1635770000 | Weidmüller

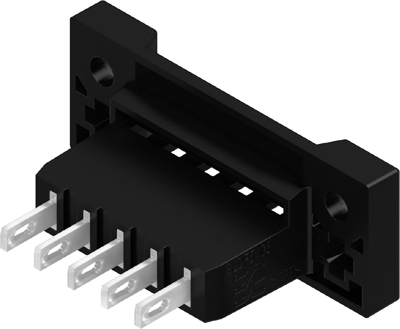

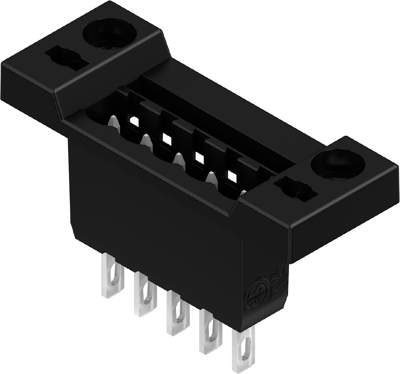

Pin header, 5 pole, pitch 5.08 mm, straight, black, 1635770000
Order No.: 50P4232
EAN: 4008190264208
MPN:
1635770000
SLDF 5.08 L/F 5 SN BK BX
Unit Price (€ / pc.)
3.2249 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
3.22 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2249 €
10 pcs.
2.9869 €
50 pcs.
2.7846 €
100 pcs.
2.6061 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB plug-in connector, 1635770000, WEIDMÜLLER
PCB plug-in connector, male header, 5.08 mm, Number of poles: 5, 180°, Flat-blade connection, Solder connection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Grid | 5.08 mm | |
| Number of rows | 1 | |
| contact surface | tin-plated | |
| Rated current | 15 A | |
| Connection | solder/plug-in connection | |
| Version | pin header | |
| Orientation | straight | |
| Pin number | 5 pole | |
| Contact type | pin | |
| Rated voltage | 400 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
