1530340000 | Weidmüller

Socket header, 5 pole, pitch 5.08 mm, straight, green, 1530340000

Order No.: 50P4888
EAN: 4050118335057
MPN:
1530340000
BLT 5.08HC/05/180F SN GN BX

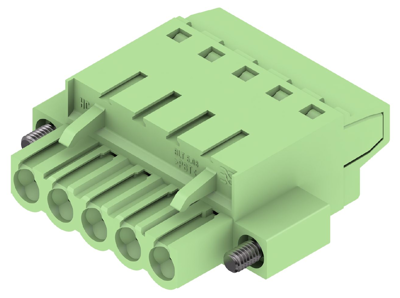

1530340000 Weidmüller PCB Connection Systems Image 1

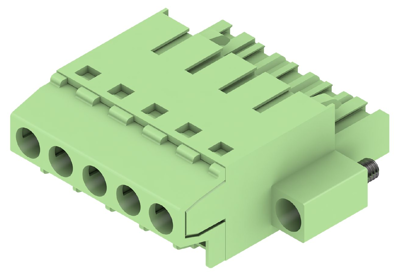

1530340000 Weidmüller PCB Connection Systems Image 2
1530340000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
8.1396 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
8.14 € *
Price list
Quantity
Price per unit*
1 pcs.
8.1396 €
10 pcs.
7.5922 €
50 pcs.
7.1043 €
100 pcs.
6.6878 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB plug-in connector, 1530340000, Weidmüller

Female plug with TOP screw connection system for connecting a wire with a straight outlet direction and screw flange. The female connector provides space for labelling and can be coded.

Technical specifications
Filter Property Value
Version socket header
contact surface tin-plated
Rated voltage 400 V
Orientation straight
Number of rows 1
Rated current 27 A
Colour green
Contact type socket
Pin number 5 pole
Grid 5.08 mm
Connection clamp connection
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
