1475790000 | Weidmüller

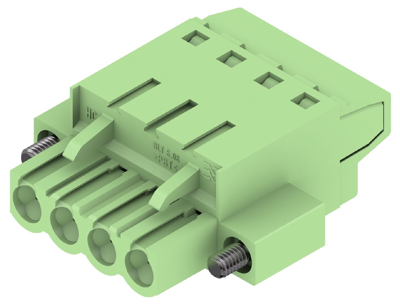

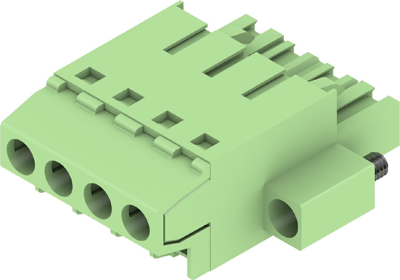

Socket header, 4 pole, pitch 5.08 mm, straight, green, 1475790000
Order No.: 50P4875
EAN: 4050118282368
MPN:
1475790000
BLT 5.08HC/04/180F SN GN BX
Unit Price (€ / pc.)
6.6045 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
6.60 € *
Price list
Quantity
Price per unit*
1 pcs.
6.6045 €
10 pcs.
6.1523 €
50 pcs.
5.7596 €
100 pcs.
5.4145 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB plug-in connector, 1475790000, Weidmüller
PCB plug-in connector, female plug, 5.08 mm, Number of poles: 4, 180°, TOP connection, Clamping range, max. : 2.5 mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| Orientation | straight | |
| Connection | clamp connection | |
| Contact type | socket | |
| Rated current | 27 A | |
| Version | socket header | |
| Pin number | 4 pole | |
| contact surface | tin-plated | |
| Number of rows | 1 | |
| Colour | green | |
| Rated voltage | 400 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
