1452640000 | Weidmüller
Pin header, 10 pole, pitch 7.62 mm, straight, green, 1452640000
Order No.: 50P0531
EAN: 4050118257939
MPN:
1452640000
SL 7.62/10/180B 3.2SN GN BX
Unit Price (€ / pc.)
3.6652 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
3.67 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6652 €
10 pcs.
3.4034 €
50 pcs.
3.1773 €
100 pcs.
2.9869 €
*incl. VAT plus shipping costs
Subject to prior sale

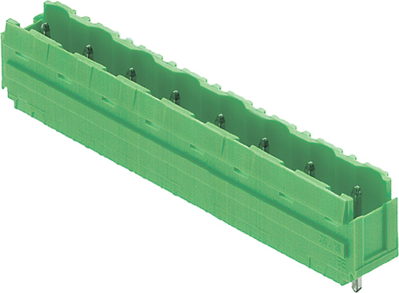

PCB plug-in connector, 1452640000, Weidmüller
PCB plug-in connector, male header, Dovetails for fixing blocks, THT solder connection, 7.62 mm, Number of poles: 10, 180°, Solder pin length (l): 3.2 mm, Pale green.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 7.62 mm | |
| Contact type | pin | |
| Connection | solder connection | |
| Rated voltage | 800 V | |
| Orientation | straight | |
| Number of rows | 1 | |
| Type of locking | No | |
| Pin number | 10 pole | |
| Colour | green | |
| Version | pin header | |
| Rated current | 18.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
