1137350000 | Weidmüller

Socket header, 10 pole, pitch 5.08 mm, straight, green, 1137350000

Order No.: 50P5588
EAN: 4032248918683
MPN:
1137350000
BLZP 5.08HC/10/180 SN GN BX

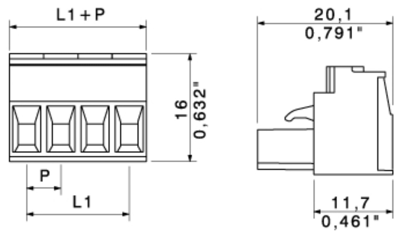

1137350000 Weidmüller PCB Connection Systems Image 1

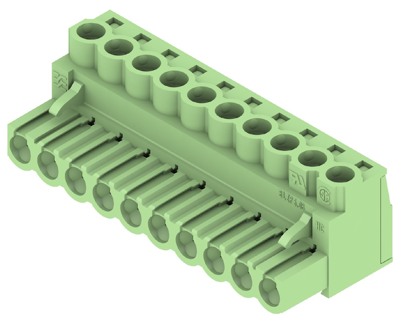

1137350000 Weidmüller PCB Connection Systems Image 2

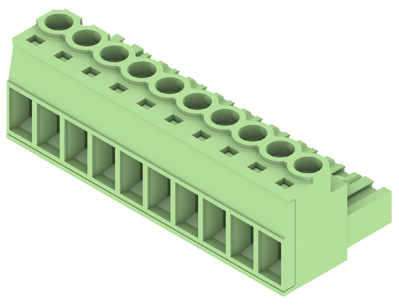

1137350000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
7.3423 € *
Available in 6 Days: 180 pcs. - if ordered today
Total Price:
7.34 € *
Price list
Quantity
Price per unit*
1 pcs.
7.3423 €
10 pcs.
6.8425 €
50 pcs.
6.4141 €
100 pcs.
6.0214 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB plug-in connector, 1137350000, Weidmüller

Female plug with clamping-yoke screw system for connecting wire with straight (180°) outlet direction. The female connector provides space for labelling and can be coded. Fastened by means of a flange or release latch. It also provides an integrated plus/minus screw, protection against faulty insertion of the wire, and is delivered with an open clamping yoke.

Technical specifications
Filter Property Value
Connection pull-bar connection
Grid 5.08 mm
Rated current 23 A
Number of rows 1
contact surface tin-plated
Version socket header
Rated voltage 400 V
Pin number 10 pole
Orientation straight
Contact type socket
Colour green
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
