1029540000 | Weidmüller

Socket header, 6 pole, pitch 5.08 mm, straight, green, 1029540000

Order No.: 50P4893
EAN: 4032248757596
MPN:
1029540000
BLT 5.08HC/06/180F SN GN BX

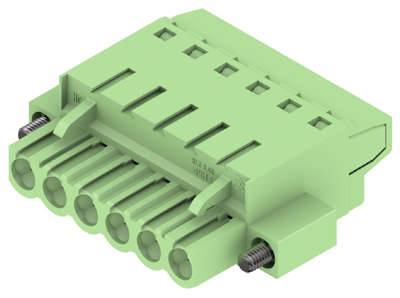

1029540000 Weidmüller PCB Connection Systems Image 1

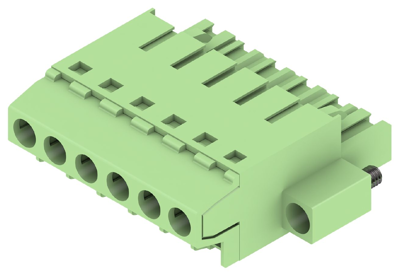

1029540000 Weidmüller PCB Connection Systems Image 2
1029540000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
9.6866 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
9.69 € *
Price list
Quantity
Price per unit*
1 pcs.
9.6866 €
10 pcs.
9.0321 €
50 pcs.
8.4609 €
100 pcs.
7.9492 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB plug-in connector, 1029540000, Weidmüller

Female plug with TOP screw connection system for connecting a wire with a straight outlet direction and screw flange. The female connector provides space for labelling and can be coded.

Technical specifications
Filter Property Value
Grid 5.08 mm
Orientation straight
Connection clamp connection
Contact type socket
Rated current 27 A
Version socket header
Pin number 6 pole
contact surface tin-plated
Number of rows 1
Colour green
Rated voltage 400 V
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
