781-623 | WAGO
1-wire potential equalization terminal, cage clamp, 0.08-4.0 mm², 1 pole, 32 A, 6 kV, gray, 781-623

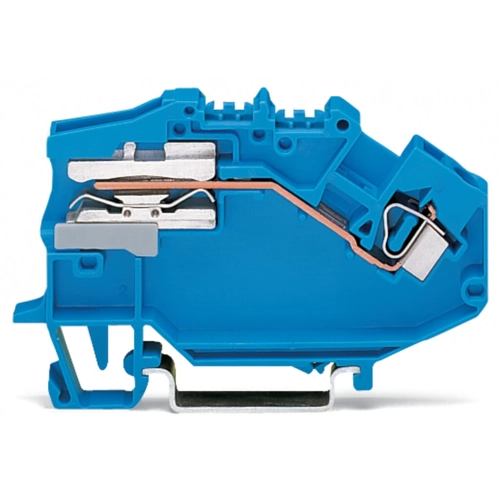

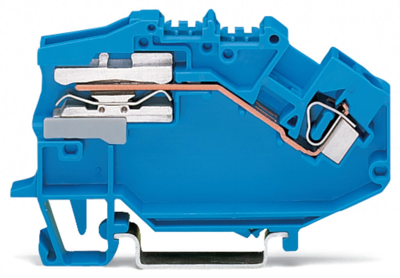

1-conductor power distribution disconnect terminal block, 781-623, WAGO
This power distribution disconnect terminal block provides fault-free electrical installation. Ensure that the strip lengths are between 9 mm and 10 mm when connecting a conductor to this power distribution disconnect terminal block. This product features a conductor terminal and utilizes CAGE CLAMP. Our highly-rated and maintenance-free CAGE CLAMP connection makes it easy to connect all conductor types without having to prepare the conductor. For example, you don't need to crimp ferrules. Depending on the conductor type, this power distribution disconnect terminal block is designed for a conductor cross section ranging from 0.08 mm² to 4 mm². It has one level. A single potential can be connected using one clamping point. The gray housing is made of polyamide (PA66) for insulation. This installation rail-mount terminal block is mounted using a DIN-35 rail.
| Filter | Property | Value |
|---|---|---|
| Version | 1-wire potential equalization terminal | |
| Pin number | 1 pole | |
| Rated Voltage | 400 V | |
| Cable cross-section | 0.08-4.0 mm² | |
| Rated surge voltage | 6 kV | |
| Number of terminals | 1 | |
| Height | 77 mm | |
| Width | 6 mm | |
| Connection | cage clamp | |
| Rated current | 32 A | |
| Colour | gray | |
| Degree of soiling | 3 | |
| AWG cross-section | AWG 28 to 12 |
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
