2002-1912/1000-867 | WAGO

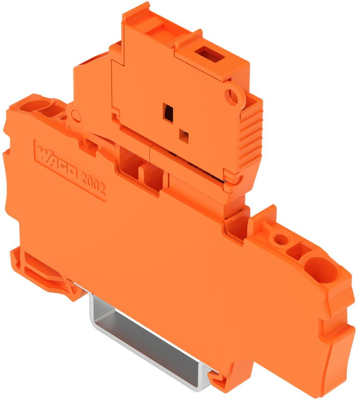

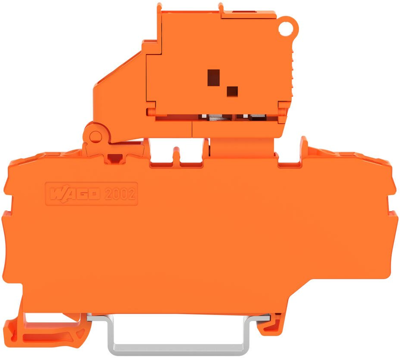

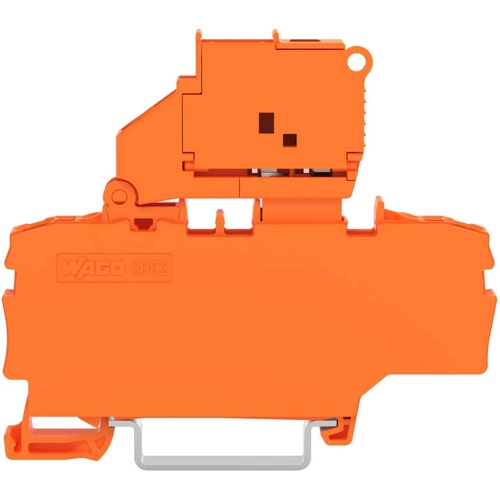

2-conductor fuse terminal block, 2002-1912/1000-867, WAGO

This fuse terminal block (item number 2002-1912/1000-867) makes connecting a wire quick and easy. Ensure that the strip length is between 10 mm and 12 mm when connecting a conductor to this fuse terminal block. Featuring a conductor terminal along with Push-in CAGE CLAMP, this connector outperforms the competition. This Push-in CAGE CLAMP is a universal, maintenance-free connection solution for any conductor type, offering a key advantage: it allows direct insertion of both solid and fine-stranded conductors with ferrules without needing tools. No preparation is required; for example, crimping the conductor’s ferrule is not necessary. This fuse terminal block is suitable for conductor cross sections ranging from 0.25 mm² to 4 mm². It has one level. The single potential can connect using the two clamping points. The orange housing is made of polyamide (PA66) for insulation. This function terminal block is mounted using a DIN-35 rail.
