2002-1614 | WAGO

2-wire fuse terminal, spring-clamp connection, 0.25-4.0 mm², 6.3 A, 6 kV, blue, 2002-1614

Order No.: 45P8318
EAN: 4055143870429
MPN:
2002-1614
Series: 2002
2002-1614 WAGO Series Terminals

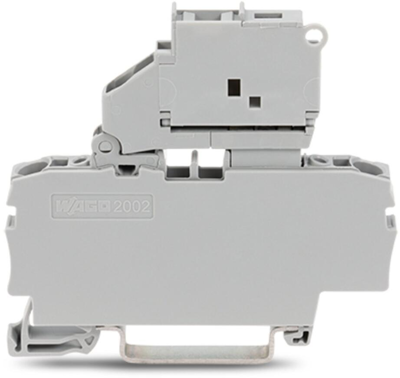

Image may differ
Unit Price (€ / pc.)
5.6049 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
5.60 € *
Price list
Quantity
Price per unit*
1 pcs.
5.6049 €
10 pcs.
5.2122 €
50 pcs.
4.7957 €
100 pcs.
4.3673 €
*incl. VAT plus shipping costs
Subject to prior sale

2-conductor fuse terminal block, 2002-1614, WAGO

This fuse terminal block (item number 2002-1614) ensures effortless electrical installation. The strip length must be between 10 mm and 12 mm when connecting a conductor to this fuse terminal block. Featuring a conductor terminal along with Push-in CAGE CLAMP, this connector delivers reliable performance. Push-in CAGE CLAMP technology provides a universal connection solution for any conductor type. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. Depending on the type of conductor, this fuse terminal block is ideal for conductor cross sections ranging from 0.25 mm² to 4 mm². It features one level and two clamping points for connecting a single potential. The blue housing is made of polyamide (PA66) for insulation. This function terminal block is mounted using a DIN-35 rail.

Technical specifications
Width 6.2 mm
Rated surge voltage 6 kV
Rated Voltage 250 V
Rated current 6.3 A
Cable cross-section 0.25-4.0 mm²
Colour blue
Version 2-wire fuse terminal
Connection spring-clamp connection
AWG cross-section AWG 22 to 12
Height 66.1 mm
Number of terminals 2
Degree of soiling 3
Logistics
Country of origin CN
Customs tariff number 85369095
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
