2002-1614/1000-867 | WAGO

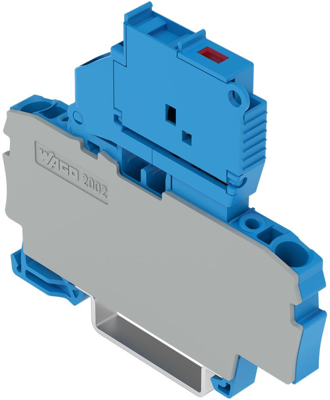

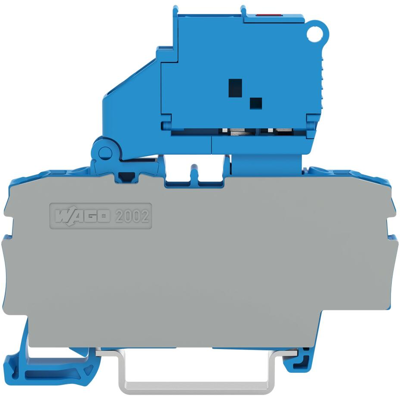

2-wire fuse terminal, spring-clamp connection, 0.25-4.0 mm², 6.3 A, 6 kV, blue, 2002-1614/1000-867
2-conductor fuse terminal block, 2002-1614/1000-867, WAGO
This fuse terminal block (item number 2002-1614/1000-867) makes connecting a wire quick and easy. The strip length must be between 10 mm and 12 mm when connecting a conductor to this fuse terminal block. This product features a conductor terminal and utilizes Push-in CAGE CLAMP. Push-in CAGE CLAMP technology provides a universal connection solution for any type of conductor. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. This fuse terminal block is suitable for conductor cross sections ranging from 0.25 mm² to 4 mm². It has one level. The single potential can connect using the two clamping points. The blue housing is made of polyamide (PA66) for insulation. This function terminal block is mounted using a DIN-35 rail.
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 0.25-4.0 mm² | |
| Height | 66.1 mm | |
| Rated Voltage | 250 V | |
| Connection | spring-clamp connection | |
| Colour | blue | |
| Number of terminals | 2 | |
| Rated surge voltage | 6 kV | |
| Version | 2-wire fuse terminal | |
| Degree of soiling | 3 | |
| Rated current | 6.3 A | |
| Width | 6.2 mm | |
| AWG cross-section | AWG 22 to 12 |
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369095 |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
