2002-1612/1000-867 | WAGO

2-wire fuse terminal, spring-clamp connection, 0.25-4.0 mm², 6.3 A, 6 kV, orange, 2002-1612/1000-867

Order No.: 45P8315
EAN: 4066966312973
MPN:
2002-1612/1000-867
Series: 2002

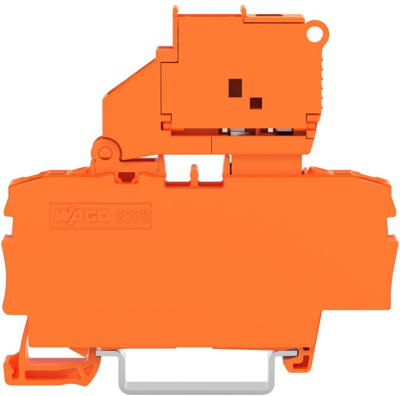

2002-1612/1000-867 WAGO Series Terminals Image 1

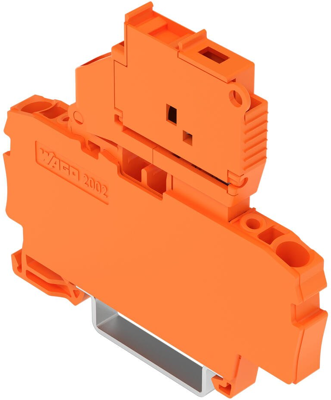

2002-1612/1000-867 WAGO Series Terminals Image 2

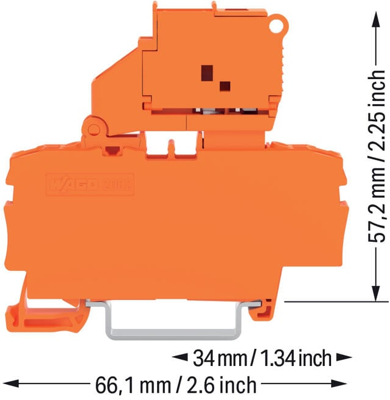

2002-1612/1000-867 WAGO Series Terminals Image 3
Image may differ
Unit Price (€ / pc.)
14.8750 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
14.88 € *
Price list
Quantity
Price per unit*
1 pcs.
14.8750 €
10 pcs.
13.8278 €
25 pcs.
12.7211 €
50 pcs.
11.5787 €
*incl. VAT plus shipping costs
Subject to prior sale

2-conductor fuse terminal block, 2002-1612/1000-867, WAGO

A quick and easy connection is guaranteed with this fuse terminal block (item number 2002-1612/1000-867). A conductor should only be connected to this fuse terminal block if its strip length is between 10 mm and 12 mm. Featuring a conductor terminal along with Push-in CAGE CLAMP, this connector outperforms the competition. Push-in CAGE CLAMP technology provides a universal connection solution for any conductor type. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. Depending on the conductor type, this fuse terminal block is suitable for conductor cross sections ranging from 0.25 mm² to 4 mm². It features one level and two clamping points for connecting a single potential. The orange housing is made of polyamide (PA66) for insulation. This function terminal block is mounted using a DIN-35 rail.

Technical specifications
Colour orange
AWG cross-section AWG 22 to 12
Rated current 6.3 A
Width 6.2 mm
Height 66.1 mm
Cable cross-section 0.25-4.0 mm²
Number of terminals 2
Version 2-wire fuse terminal
Connection spring-clamp connection
Degree of soiling 3
Rated Voltage 250 V
Rated surge voltage 6 kV
Logistics
Country of origin CN
Customs tariff number 85369095
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
