774-9994/106-102 | WAGO

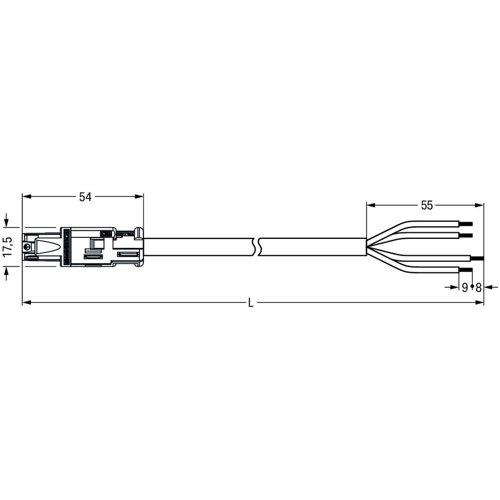

Connection cable, 1 m, socket straight to open end, 1.5 mm², 774-9994/106-102
Unit Price (€ / pc.)
14.0420 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Connection cable, 774-9994/106-102, WAGO
This Connecting line supports fast, reliable installation. For greater security in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. This product fits optimally into boreholes or conduits due to its design.
Features
- With A coding for a large number of applications
- Flexible installation to save space
- Rapid, structured electrical installation
Technical specifications
| Cable length | 1 m | |
| Coding | A | |
| Cable cross-section | 1.5 mm² | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Connection (1) | socket |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
