771-9993/107-401 | WAGO

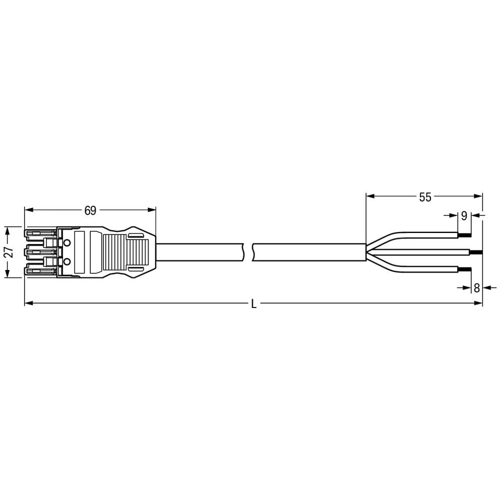

Connection cable, 4 m, socket, 3 pole straight to open end, 2.5 mm², 771-9993/107-401
Unit Price (€ / pc.)
11.9714 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Connecting line, 771-9993/107-401, WAGO
The WINSTA MIDI Connecting line rated current 20 A allows assembly of solid and fine-stranded conductors. On PCBs, in control cabinets or for connecting lights - pluggable installation connector allows you to establish connections according to many different requirements in no time flat. For greater security in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20.
The cable is pre-assembled with a socket and a free end. The WINSTA Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs.
Features
- Pluggable installation connector with protection against mismating
- With A coding for a large number of applications
- Fast, secure installation
Technical specifications
| Cable length | 4 m | |
| Coding | A | |
| Cable cross-section | 2.5 mm² | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Connection (1) | socket, 3 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
