771-8985/217-604 | WAGO

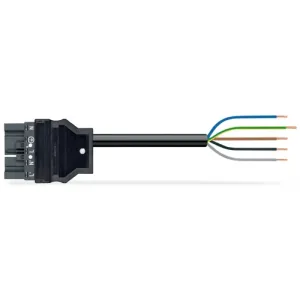

Connection cable, 6 m, plug, 5 pole straight to open end, 2.5 mm², 771-8985/217-604
Unit Price (€ / pc.)
41.8642 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Connecting line, 771-8985/217-604, WAGO
The WINSTA MIDI Connecting line 5-pole allows assembly of fine-stranded and solid conductors. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. This product has a current rating of 20 A - therefore it is also suitable for powerful loads.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs.
Features
- Pluggable installation connector with protection against mismating
- For supplying power to power supply units
- Quick replacement of defective units during ongoing operation
Technical specifications
| Cable length | 6 m | |
| Coding | L | |
| Cable cross-section | 2.5 mm² | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Connection (1) | plug, 5 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
