771-8965/107-101 | WAGO

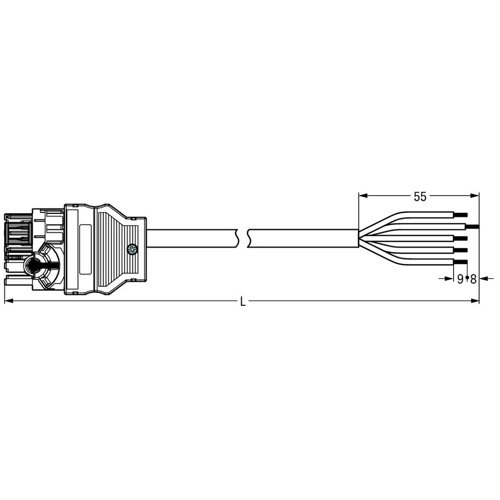

Connection cable, 1 m, phase change straight to open end, 2.5 mm², 771-8965/107-101
Unit Price (€ / pc.)
31.0471 € *
Standard delivery time from the manufacturer is: 5 Weeks
Connecting line, 771-8965/107-101, WAGO
The pre-assembled cable is fitted with a distributor with phase change (5-pole). WINSTA® is the connector system that is perfectly tailored to the high demands of electrical installations. It enables cables and components to be assembled quickly and safely without errors.
Features
- Protection against mismating eliminates errors
- For automation controllers
- With A coding for a large number of uses
- Flexible installation to save space
- Quick replacement of defective units during ongoing operation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | phase change | |
| Connection 1 design | straight | |
| Cable length | 1 m | |
| Coding | A | |
| Cable cross-section | 2.5 mm² | |
| Version | connection line | |
| Connection (2) | open end |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
