740-103/000-021 | WAGO

PCB terminal, 3 pole, pitch 5 mm, AWG 28-12, 16 A, cage clamp, light gray, 740-103/000-021

Order No.: 44P4715
EAN: 4055143260152
MPN:
740-103/000-021
Series: 740

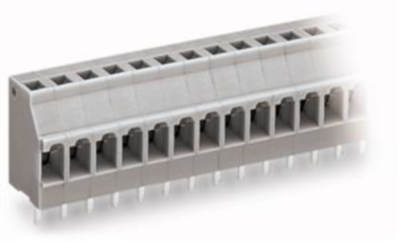

740-103/000-021 WAGO PCB Terminal Blocks Image 1

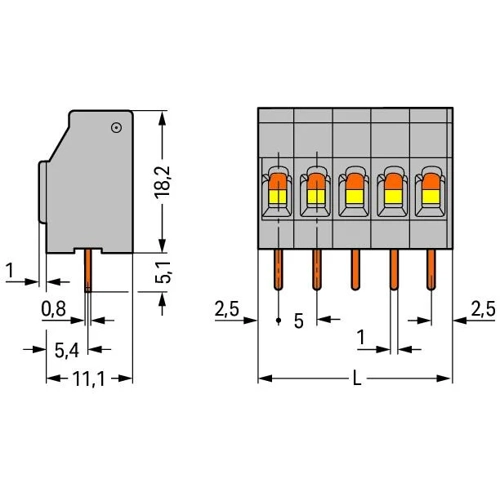

740-103/000-021 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
1.9635 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
1.96 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.9635 €

PCB terminal, 740-103/000-021, WAGO

PCB terminal block, 2.5 mm², pin spacing: 5 mm, 3-pole, CAGE CLAMP, 2.50 mm², light gray.

Features

  • PCB terminal strips with screwdriver-actuated CAGE CLAMP connection
  • Top-of-unit actuation
  • PCB terminal strips may be positioned adjacently without losing any poles
Technical specifications
Colour light gray
Depth 11.1 mm
AWG cross-section AWG 28-12
Rated current 16 A
Grid 5 mm
Width 15 mm
Height 23.3 mm
Cable cross-section 0.08-2.5 mm²
Pin number 3 pole
Connection cage clamp
Rated voltage 320 V
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
