PCB terminal, 11 pole, pitch 7.5 mm, AWG 26-14, 17.5 A, push-in cage clamp, gray, 2601-1311
Unit Price (€ / pc.)
7.0091 € *
Available: 0 pcs.
Leadtime: On Request **

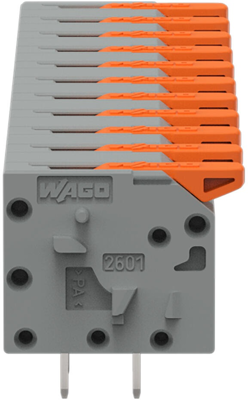

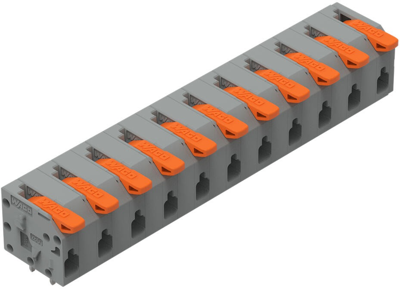

PCB terminal block, 2601-1311, WAGO
PCB terminal block with Push-in CAGE CLAMP connection, with operating lever, 26-14 AWG, Pin spacing: 7.5 mm, 11-pole, conductor cross-section: 1.5 mm², color: gray.
Features
- Push-in termination of solid and ferruled conductors
- Intuitive and tool-free operation
- Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
- Testing can be performed both parallel and perpendicular to conductor entry

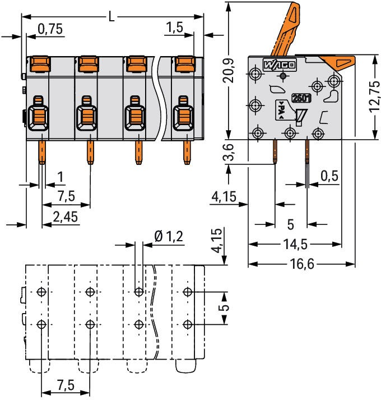

Technical specifications
Connection | push-in cage clamp | |
AWG cross-section | AWG 26-14 | |
Width | 82.3 mm | |
Colour | gray | |
Height | 16.35 mm | |
Contact distance | RM 5/7.5 | |
Cable cross-section | 1.5 mm² | |
Rated voltage | 1000 V | |
Rated current | 17.5 A | |
Pin number | 11 pole | |
Grid | 7.5 mm | |
Depth | 16.58 mm |
Download
Logistics
Country of origin | PL |
Customs tariff number | 85369010 |
Compliance
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
