PCB terminal, 4 pole, pitch 7.5 mm, AWG 26-14, 17.5 A, push-in cage clamp, gray, 2601-1304

Order No.: 09H807
EAN: 4066966242133
MPN:
2601-1304
Series: 2601
WAGO

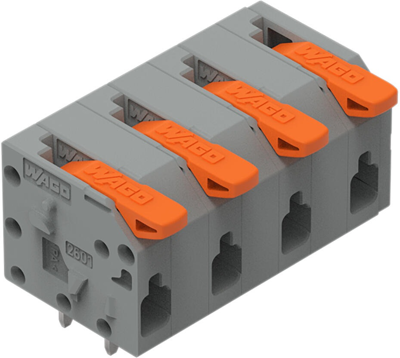

2601-1304 WAGO PCB Terminal Blocks Image 1

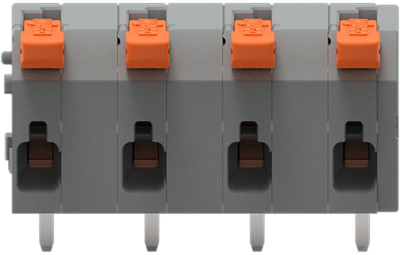

2601-1304 WAGO PCB Terminal Blocks Image 2

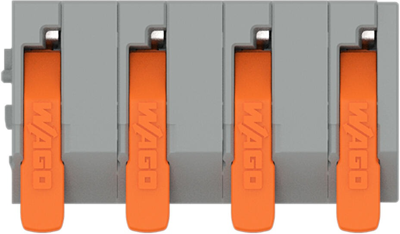

2601-1304 WAGO PCB Terminal Blocks Image 3

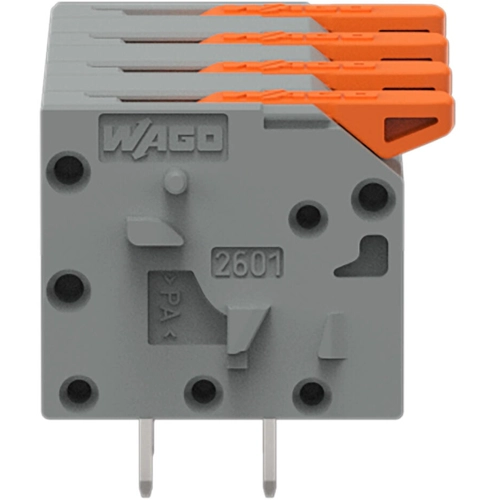

2601-1304 WAGO PCB Terminal Blocks Image 4
Image may differ
Unit Price (€ / pc.)
2.5466 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
2.55 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.5466 €

PCB terminal block, 2601-1304, WAGO

PCB terminal block with Push-in CAGE CLAMP connection, with operating lever, 26-14 AWG, Pin spacing: 7.5 mm, 4-pole, conductor cross-section: 1.5 mm², color: gray.

Features

  • Push-in termination of solid and ferruled conductors
  • Intuitive and tool-free operation
  • Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
  • Testing can be performed both parallel and perpendicular to conductor entry
Technical specifications
Connection push-in cage clamp
AWG cross-section AWG 26-14
Width 29.8 mm
Colour gray
Height 16.35 mm
Contact distance RM 5/7.5
Cable cross-section 1.5 mm²
Rated voltage 1000 V
Rated current 17.5 A
Pin number 4 pole
Grid 7.5 mm
Depth 16.58 mm
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
