721-2208/026-000 | WAGO

Socket header, 8 pole, pitch 7.5 mm, angled, light gray, 721-2208/026-000

Order No.: 44P2636
EAN: 4044918567756
MPN:
721-2208/026-000
Series: MCS MIDI

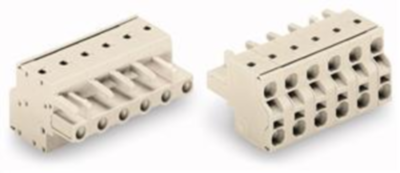

721-2208/026-000 WAGO PCB Connection Systems Image 1
721-2208/026-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
7.8659 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
7.87 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.8659 €

Female header, 721-2208/026-000, Wago

2-conductor female multipoint connector 8-pole Spacing 7.5 mm / 0.295 in codable with 2 detents 100 % mismating protected light gray

Technical specifications
Colour light gray
Type of locking No
contact surface tin-plated
Rated current 16 A
Grid 7.5 mm
Connection plating tin-plated
Pin number 8 pole
Version socket header
Additional parts equipped
Orientation angled
Connection spring balancer connection
Contact type socket
Rated voltage 630 V
Number of rows 2
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
