231-846/001-000 | WAGO

Pin header, 16 pole, pitch 7.5 mm, angled, gray, 231-846/001-000

Order No.: 43P6491
EAN: 4044918868358
MPN:
231-846/001-000
231-846/001-000 WAGO PCB Connection Systems Image 1
231-846/001-000 WAGO PCB Connection Systems Image 2
231-846/001-000 WAGO PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
3.7961 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
3.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.7961 €

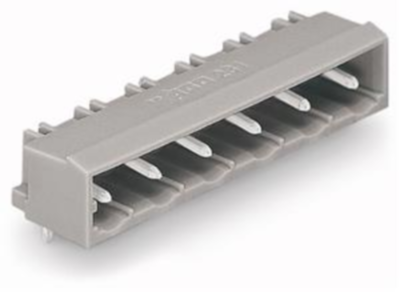

Male connector, 231-846/001-000, Wago

Male header with angled solder pins 1 x 1 mm 16 poles grid spacing 7,5 mm / 0.295 in with side panels mating direction parallel to pcb grey

Technical specifications
Filter Property Value
Contact type pin
Orientation angled
Grid 7.5 mm
Additional parts equipped
Type of locking No
Rated current 12 A
Number of rows 1
Colour gray
contact surface tin-plated
Version pin header
Connection plating tin-plated
Connection solder pin
Pin number 16 pole
Rated voltage 630 V
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
