231-304/026-000 | WAGO

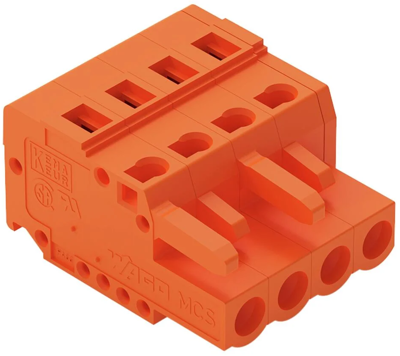

Socket header, 4 pole, pitch 5.08 mm, angled, orange, 231-304/026-000
Unit Price (€ / pc.)
3.1297 € *
Available: 197 pcs.
Total Price:
3.13 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1297 €
10 pcs.
2.8322 €
100 pcs.
2.5347 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket header, 231-304/026-000, WAGO
This female connector 231-304/026-000 ensures effortless electrical installations. Strip lengths must be between 8 and 9 mm when connecting conductors to this female connector. Featuring one conductor terminal along with CAGE CLAMP, this product outperforms the competition. Our renowned universal connection known as CAGE CLAMP leads the way when it comes to connection technology and electrical interconnections. Dimensions: 21.82 x 14.3 x 26.45 mm. This female connector is suitable for conductor cross sections ranging from 0.08 mm² to 2.5 mm². The contact surface is coated with tin.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| Contact type | socket | |
| Pin number | 4 pole | |
| Grid | 5.08 mm | |
| Connection | spring balancer connection | |
| Orientation | angled | |
| Type of locking | No | |
| contact surface | tin-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 16 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | orange |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
