231-303/026-000 | WAGO
Socket header, 3 pole, pitch 5.08 mm, angled, orange, 231-303/026-000
Unit Price (€ / pc.)
2.3919 € *
Available: 45 pcs.
Total Price:
2.39 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3919 €
10 pcs.
2.1420 €
100 pcs.
1.9397 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket header, 231-303/026-000, WAGO

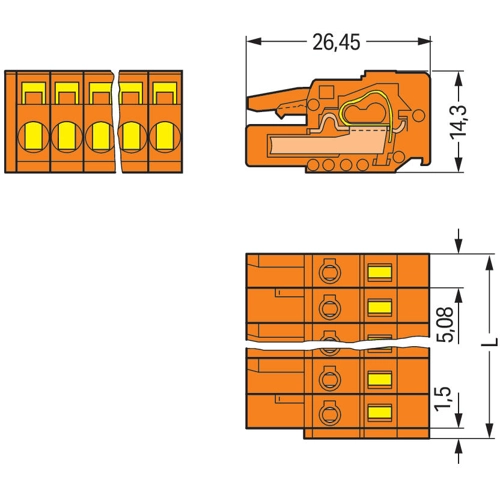

This female connector 231-303/026-000 provides hassle-free electrical installations. Strip lengths must be between 8 and 9 mm when connecting conductors to this female connector. This product features one conductor terminal and utilizes CAGE CLAMP. Our renowned universal connection known as CAGE CLAMP is the industry standard for connection technology and electrical interconnections. Dimensions: 16.74 x 14.3 x 26.45 mm. This female connector is suitable for conductor cross sections ranging from 0.08 mm² to 2.5 mm². Tin is used for coating the contact surfaces.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| Contact type | socket | |
| Pin number | 3 pole | |
| Grid | 5.08 mm | |
| Connection | spring balancer connection | |
| Orientation | angled | |
| Type of locking | No | |
| contact surface | tin-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 16 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | orange |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
