231-2103/026-000 | WAGO

Socket header, 3 pole, pitch 5 mm, angled, gray, 231-2103/026-000

Order No.: 43P5634
EAN: 4044918562935
MPN:
231-2103/026-000
Series: 231
WAGO

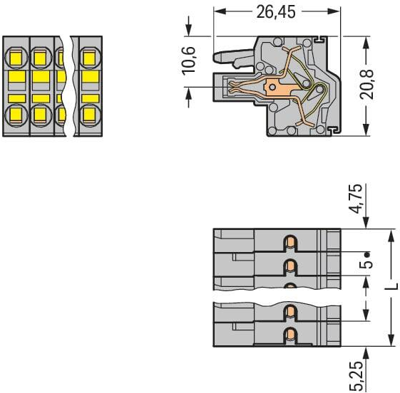

231-2103/026-000 WAGO PCB Connection Systems Image 1

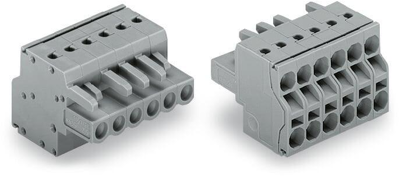

231-2103/026-000 WAGO PCB Connection Systems Image 2

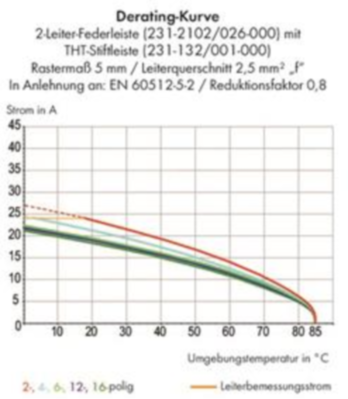

231-2103/026-000 WAGO PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
2.8084 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.81 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.8084 €

Female header, 231-2103/026-000, Wago

2-conductor female multipoint connector 3-pole Spacing 5 mm / 0.197 in codable only 1 detent gray

Technical specifications
Connection spring balancer connection
Connection plating tin-plated
Number of rows 2
Version socket header
Additional parts equipped
Colour gray
Contact type socket
contact surface tin-plated
Rated voltage 320 V
Rated current 16 A
Orientation angled
Pin number 3 pole
Grid 5 mm
Type of locking No
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
