231-2102/026-000 | WAGO

Socket header, 2 pole, pitch 5 mm, angled, gray, 231-2102/026-000

Order No.: 43P5632
EAN: 4044918562904
MPN:
231-2102/026-000

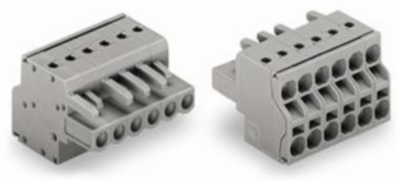

231-2102/026-000 WAGO PCB Connection Systems Image 1
231-2102/026-000 WAGO PCB Connection Systems Image 2
231-2102/026-000 WAGO PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
1.8445 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
1.84 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.8445 €

Female header, 231-2102/026-000, Wago

2-conductor female multipoint connector 2-pole Spacing 5 mm / 0.197 in codable only 1 detent gray

Technical specifications
Contact type socket
Orientation angled
Grid 5 mm
Additional parts equipped
Type of locking No
Rated current 16 A
Number of rows 2
Colour gray
contact surface tin-plated
Version socket header
Connection plating tin-plated
Connection spring balancer connection
Pin number 2 pole
Rated voltage 320 V
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
