231-209/027-000 | WAGO

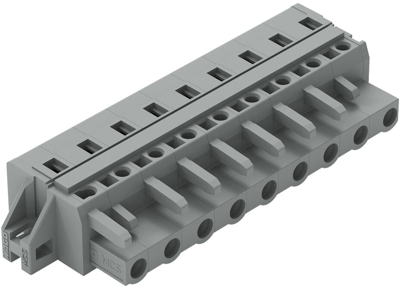

Socket header, 9 pole, pitch 7.5 mm, angled, gray, 231-209/027-000
Unit Price (€ / pc.)
6.7592 € *
Standard delivery time from the manufacturer is: 3 Weeks
Female header, 231-209/027-000, Wago
Multipoint connector with mounting flanges 9-pin Spacing 7.5 mm / 0.295 in codable with 2 detents with stiffening strips for plug-in units and feed-throughs for screw or similar connectors mounting types gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | socket | |
| Orientation | angled | |
| Grid | 7.5 mm | |
| Additional parts | equipped | |
| Type of locking | No | |
| Rated current | 16 A | |
| Number of rows | 1 | |
| Colour | gray | |
| contact surface | tin-plated | |
| Version | socket header | |
| Connection plating | tin-plated | |
| Connection | spring balancer connection | |
| Pin number | 9 pole | |
| Rated voltage | 630 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
