770-213 | WAGO

Plug, 3 pole, snap-in, spring-clamp connection, 0.5-4.0 mm², black, 770-213

Order No.: 44P8908
EAN: 4044918254137
MPN:
770-213
Series: WINSTA MINI

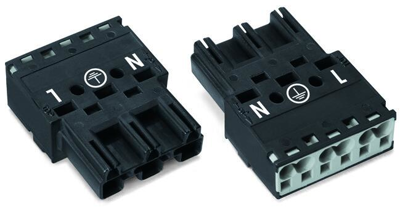

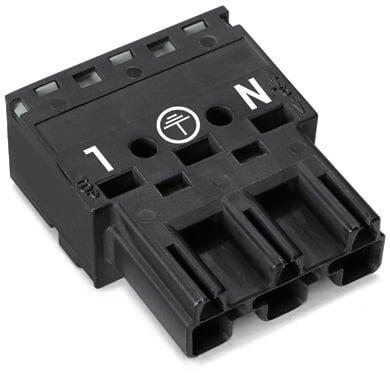

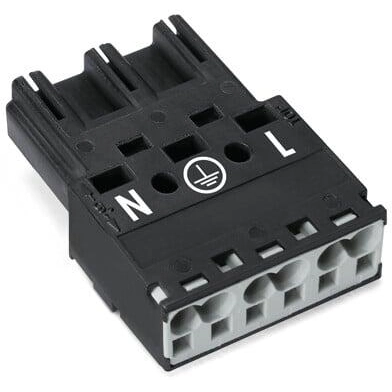

770-213 WAGO Device Connectors Image 1
770-213 WAGO Device Connectors Image 2
770-213 WAGO Device Connectors Image 3
770-213 WAGO Device Connectors Image 4
Image may differ
Unit Price (€ / pc.)
2.7132 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
2.71 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.7132 €

Plug, 770-213, WAGO

The WINSTA MIDI male connector/plug with protection type IP20 is the pluggable solution for your use in control cabinets, on PCBs or for lighting connections. The color coding and mechanical coding of the pluggable installation connector ensure error-free installation of the individual components – including protection against mismating. The pluggable installation connector offers protection against contact with live components in accordance with protection type IP20. This pluggable installation connector can be employed for a voltage load up to 25 A. Therefore, it can also be used for high power loads. WINSTA MIDI with Push-in CAGE CLAMP spring pressure connection technology is used in can be found in a variety of projects you can use for quick, easy and maximally flexible installation.

Features

  • With A coding for a great number of uses
  • Flexible installation to save space
  • Fast, secure installation
Technical specifications
Filter Property Value
Switch illuminated No
Assembly snap-in
Rated voltage UL/CSA 600 V
Rated current UL/CSA 23 A
Cable cross-section 0.5-4.0 mm²
Fuse holder present No
Design straight
Colour black
Pin number 3 pole
Rated voltage IEC 250 V
Product type plug
Line filter present No
Rated current IEC 25 A
Type of locking Yes
Connection spring-clamp connection
Power switch available No
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
