828-334 | WAGO

Through-panel terminal block, 828-334, WAGO

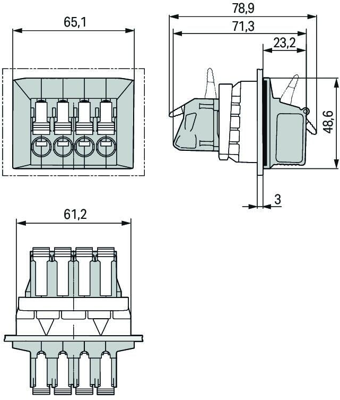

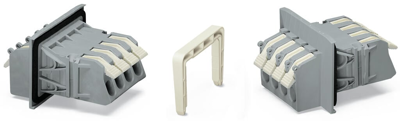

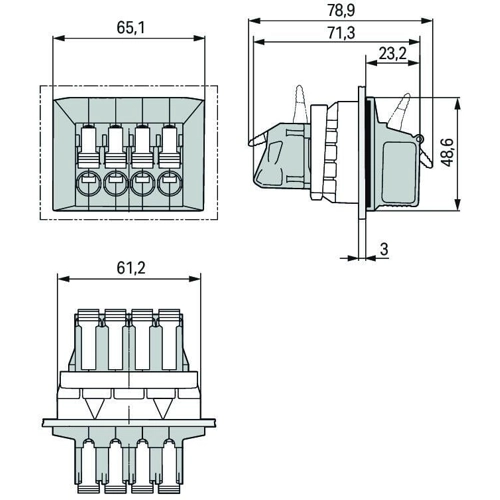

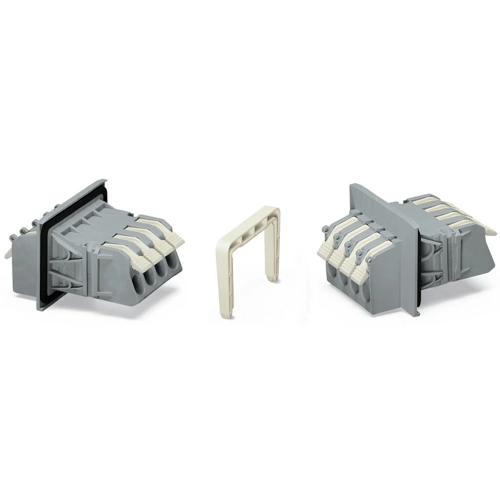

The feed-through terminal has the article number 828-334 and enables a fast and reliable connection. This feed-through terminal provides you with an integrated connector system that can be used in a variety of ways: as a PCB connector, as a feed-through connector, as a flying lead-through connector for various types of assembly, or as a connector on a terminal block. A stripping length of 12 to 13 mm is required for the conductor connection with this feed-through terminal. This product with its 2 conductor connections is based on CAGE CLAMP technology. The reliable and maintenance-free CAGE CLAMP universal connection makes it possible to connect any type of conductor with a cage clamp without the need to pre-treat the conductor. There is therefore no need to crimp on a wire end ferrule. The dimensions are width x height x depth (65.1 x 48.6 x 78.9) mm. Depending on the conductor type, this feed-through terminal is suitable for a conductor cross-section from 1.5 mm² to 16 mm². Tin was used for the contact surface. This feed-through terminal is operated using a lever.
