BZX384C7V5-V | Vishay

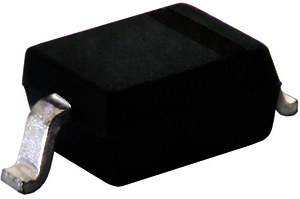

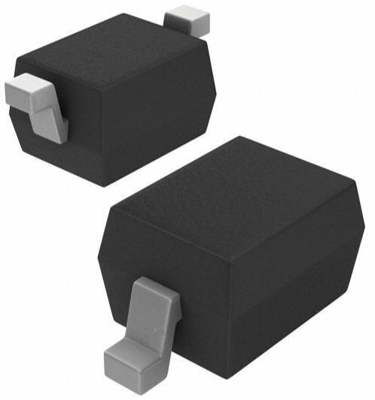

Small signal zener diode, 7.5 V, 200 mW, SOD-323, BZX384C7V5-V
Active
Total price
(
0.1000 €
* / pcs.)
1.00 €
Available: 19 pcs.
Quantity
Price per unit*
10 pcs.
0.1000 €
100 pcs.
0.0785 €
500 pcs.
0.0655 €
1000 pcs.
0.0571 €
2500 pcs.
0.0524 €
*incl. VAT plus
shipping costs
Please send price/quantity requests to info@buerklin.com
Description
Product by Vishay at Bürklin Elektronik
Zener diodes, 200 mW, type Vishay BZX384.
Zener voltage tolerance: ±5.0 %. Power losses: 200 mW. Package: SOD323.
Technical attributes (type, Zener voltage range): BZX384C7V5-V, 7.0 to 7.9 V
Technical specifications
| Number of diodes | 1 | |
| Version | Small signal zener diode | |
| Enclosure | SOD-323 | |
| Length | 1.95 mm | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -65 °C | |
| Assembly | SMD | |
| Junction temperature (max.) | 150 °C | |
| Power loss | 0.2 W | |
| Zener voltage | 7.5 V |
Logistics
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
Download
Variations
Order No.:
22S8012
Manufacturer:
Vishay
Manufacturer SKU
BZX384C7V5-V
10 pcs.
0.1000 €
100 pcs.
0.0785 €
500 pcs.
0.0655 €
1000 pcs.
0.0571 €
2500 pcs.
0.0524 €
1.00 € *
Available: 19 pcs.
0.2 W
Small signal zener diode
1.95 mm
7.5 V
SMD
-65 °C
150 °C
SOD-323
Order No.:
22S8008
Manufacturer:
Vishay
Manufacturer SKU
BZX384C5V1-V
10 pcs.
0.0785 €
100 pcs.
0.0631 €
500 pcs.
0.0512 €
1000 pcs.
0.0440 €
2500 pcs.
0.0417 €
0.79 € *
Available: 79 pcs.
0.2 W
Small signal zener diode
1.95 mm
5.1 V
SMD
-55 °C
150 °C
SOD-323
Order No.:
22S8024
Manufacturer:
Vishay
Manufacturer SKU

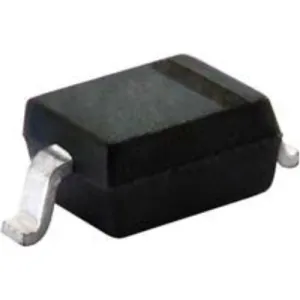

BZX384C24-V
