WK202070A6800J2200 | Vishay

Metal oxide film resistor, 680 Ω, 1 W, ±5 %, WK202070A6800J2200

Order No.: 18E188
EAN: 4099879672919
MPN:
WK202070A6800J2200
Series: WK2

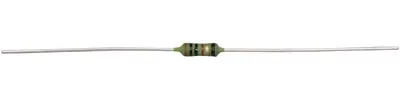

WK202070A6800J2200 Vishay Wirewound Resistors Image 1

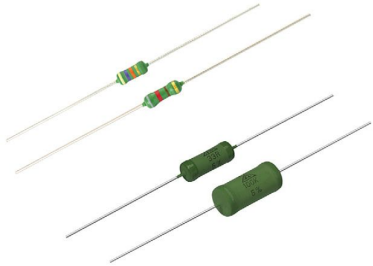

WK202070A6800J2200 Vishay Wirewound Resistors Image 2
Image may differ
Unit Price (€ / pc.)
0.1095 € *
Available: 1,856 pcs.
Total Price:
0.11 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1095 €
10 pcs.
0.0964 €
100 pcs.
0.0678 €
1000 pcs.
0.0417 €
4000 pcs.
0.0357 €
*incl. VAT plus shipping costs
Subject to prior sale

Metal oxide film resistors, 1.0 W, tolerance 5.0 %, type Vishay/Draloric WK2.

Heavy-duty version

Technical specifications
Filter Property Value
max. operating temperature 200 °C
Power 1 W
Assembly THT
Tolerance ±5 %
Temperature coefficient ±200 ppm/K
Design axial
diameter 2.5 mm
min. operating temperature -55 °C
Length 6.5 mm
ohmic resistance 680 Ω
Version metal oxide resistor
Logistics
Property Value
Original Packaging Ammopack with 2,000 pieces
Country of origin IN
Customs tariff number 85332100
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
