MCS04020C3309FE000 | Vishay

Resistor, thin film, SMD 0402 (1005), 33 Ω, 0.063 W, ±1 %, MCS04020C3309FE000

Order No.: 07E306
EAN: 4099879177216
MPN:
MCS04020C3309FE000
Series: MCS 0402
Vishay
MCS04020C3309FE000 Vishay SMD Resistors
Image may differ
Print
Key Specification:
ohmic resistance 33 Ω
Tolerance ±1 %
Power 0.063 W
Design SMD 0402 (1005)
Show variants: 24
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.0274 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
273.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
10000 pcs.
0.0274 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

SMD thin-film resistor, MCS 0402 TK50 1% 33R, Beyschlag

Resistor, Thin film, SMD 0402, 33 Ω, 0.063 W, ±1 %

Features

  • Approved according to EN 140401-801
  • Excellent overall stability: Class 0.5
  • Advanced thin film technology
  • Compatible with lead (Pb)-free and lead containing soldering processes
  • Lead (Pb)-free and RoHS compliant
Technical specifications
ohmic resistance 33 Ω
max. operating temperature 155 °C

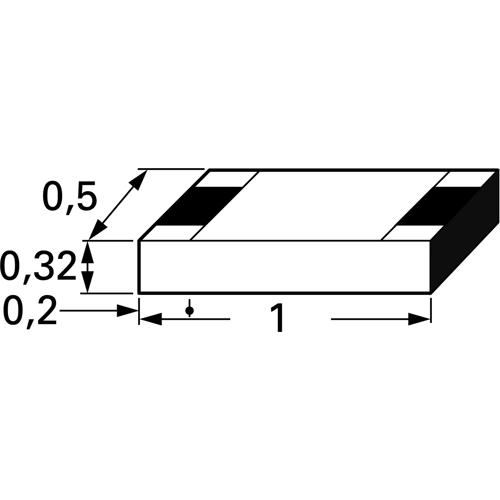

Length 1 mm
min. operating temperature -55 °C
Height 0.32 mm
Technology thin film
Width 0.5 mm
Design SMD 0402 (1005)
Power 0.063 W
Temperature coefficient ±50 ppm/K
Tolerance ±1 %
Articles of same specification 0
Logistics
Customs tariff number 85332100
Original Packaging Reel with 10,000 pieces
Country of origin DE
Compliance
Substance description Lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
