MCS04020C1000FE000 | Vishay

Resistor, thin film, SMD 0402 (1005), 100 Ω, 0.063 W, ±1 %, MCS04020C1000FE000

Order No.: 07E312
EAN: 4099879177636
MPN:
MCS04020C1000FE000
Series: MCS 0402
MCS04020C1000FE000 Vishay SMD Resistors
Image may differ
Unit Price (€ / pc.)
0.1023 € *
Available: 9,170 pcs.
Total Price:
0.10 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1023 €
10 pcs.
0.0250 €
100 pcs.
0.0238 €
500 pcs.
0.0202 €
1000 pcs.
0.0190 €
*incl. VAT plus shipping costs
Subject to prior sale

SMD thin-film resistor, MCS 0402 TK50 1% 100R, Beyschlag

Resistor, Thin film, SMD 0402, 100 Ω, 0.063 W, ±1 %

Features

  • Approved according to EN 140401-801
  • Excellent overall stability: Class 0.5
  • Advanced thin film technology
  • Compatible with lead (Pb)-free and lead containing soldering processes
  • Lead (Pb)-free and RoHS compliant
Technical specifications
Filter Property Value
Technology thin film

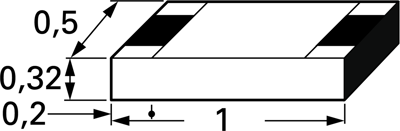

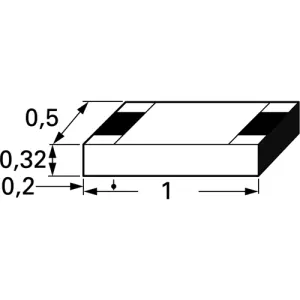

Design SMD 0402 (1005)
ohmic resistance 100 Ω
Temperature coefficient ±50 ppm/K
min. operating temperature -55 °C
Height 0.32 mm
Length 1 mm
Tolerance ±1 %
max. operating temperature 155 °C
Width 0.5 mm
Power 0.063 W
Logistics
Property Value
Country of origin IL
Original Packaging Reel with 10,000 pieces
Customs tariff number 85332100
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
