534B1104JC | Vishay

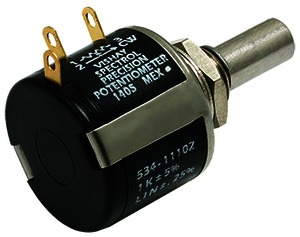

Wire-wound potentiometer, 10 turns, 100 kΩ, 2 W, linear, solder lug, 534B1104JC
Unit Price (€ / pc.)
29.4882 € *
Available: 8 pcs.
Next delivery: 10 pcs. on 2025-12-29
Total Price:
29.49 € *
Price list
Quantity
Price per unit*
1 pcs.
29.4882 €
10 pcs.
27.2986 €
50 pcs.
25.7516 €
100 pcs.
24.2998 €
250 pcs.
23.1336 €
*incl. VAT plus shipping costs
Subject to prior sale
Multi turn wirewound potentiometer, 534-104 100K, Vishay
This multi-turn wirewound potentiometer offers increased accuracy and control with its ability to make multiple rotations.

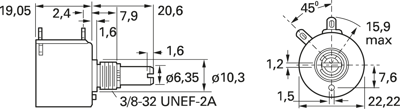

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Mechanic rotary range | 3600 ° | |
| Power | 2 W | |
| max. number of revolutions | 10 | |
| Connection | solder lug | |
| max. operating temperature | 125 °C | |
| axle diameter | 6.35 mm | |
| Rotary range, electrical | 3600 ° | |
| Length | 22.2 mm | |
| Assembly | straight | |
| Width | 19.1 mm | |
| min. operating temperature | -55 °C | |
| Track Taper | linear | |
| ohmic resistance | 100 kΩ | |
| Version | wire-wound potentiometer |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SK |
| Customs tariff number | 85333100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
