SFH636 | Vishay

Vishay optocoupler, DIP-6, SFH636

Order No.: 68S3559
EAN: 4099879001658
MPN:
SFH636
Series: SFH636

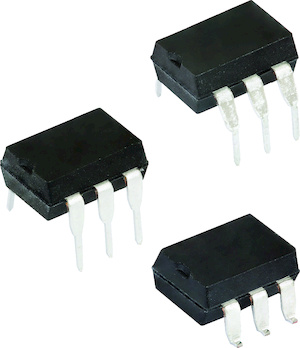

SFH636 Vishay Optocoupler
Image may differ
Unit Price (€ / pc.)
0.714 € *
Available: 1 pcs.
Leadtime: On Request **
Total Price:
0.71 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
0.714 €

Optocoupler, SFH636, VISHAY

The SFH636 is an optocoupler with a GaAlAs infrared emitting diode, optically coupled to an integrated photo detector consisting of a photo diode and a high speed transistor in a low pinout DIP-6 package. The device is functionally similar to 6N136 except there is no base connection and the foot print is different. Noise and common mode rejection performance is enhanced by not bringing out the base connection. Signals can be transmitted between two electrically separated circuits up to frequencies of 2 MHz.

Features

  • High speed optocoupler without base connection
  • Integrated detector with photo diode and transistor
  • TTL compatible
  • Open collector output

Applications

  • Data communications
  • Programmable controllers
  • IGBT logic and MOSFET driver stages
  • IPM drivers
Technical specifications
Assembly THT
Enclosure DIP-6
Data transmission rate 1000000 mb/s
Number of channels 1
Isolation voltage 4.42 kV
Output current 8 mA
Rise time 300 s
Fall time 300 s
min. operating temperature -55 °C
max. operating temperature 100 °C
Logistics
Country of origin MY
Customs tariff number 85414900
Original Packaging Stange mit 50 Stück
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
