GBPC3508-E4/51 | Vishay

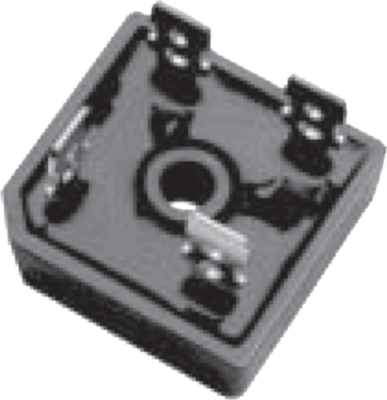

Vishay bridge rectifier, 560 V, 800 V (RRM), 35 A, flat bridge, GBPC3508-E4/51

Order No.: 04S8047
EAN: 4099879035967
MPN:
GBPC3508-E4/51
Series: GBPC
GBPC3508-E4/51 Vishay Bridge Rectifiers
Image may differ
Unit Price (€ / pc.)
3.0464 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
304.64 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
3.0464 €

Bridge rectifier, GBPC3508-E4/51, VISHAY

General-purpose use in AC/DC bridge full-wave rectification for power supply, home appliances, office equipment and industrial automation applications.

Features

  • High surge current capability
  • Low thermal resistance
  • UL recognized
Technical specifications
Version 1-phase
Assembly screw mounting
Enclosure flat bridge
Input voltage 560 V
Rated current 35 A
Voltage V RRM (peak reverse voltage) 800 V
min. operating temperature -55 °C
max. operating temperature 150 °C
Logistics
Original Packaging Bulk with 100 pieces
Customs tariff number 85411000
MSL MSL 1
Country of origin CN
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
