TPC 080-112 | TRACO POWER
Power supply, 12 to 15 VDC, 6 A, 72 W, TPC 080-112
Unit Price (€ / pc.)
87.3698 € *
Available in 10 days: 74 pcs. - if ordered today
Total Price:
87.37 € *
Price list
Quantity
Price per unit*
1 pcs.
87.3698 €
10 pcs.
78.6352 €
*incl. VAT plus shipping costs
Subject to prior sale

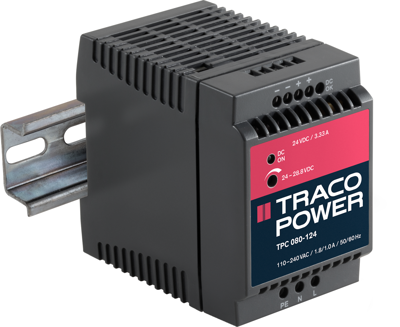

Power supply, TPC 080-112, Traco
The TPC 080-112 is a power supply with an excellent price/performance ratio. It has a universal input of 85-264 VAC or 90-375 VDC and is designed for Class I operation in industrial and residential environments. With the optional redundancy module with active current sharing, these power supplies provide a highly reliable, true redundant DC power supply.
Features
- High efficiency over the entire load range
- Reliable snap-on mounting on DIN rails or with wall bracket
- Output voltage adjustable
- Signal for good performance
- Low ripple and noise
- Overload and short circuit protection
Applications
- Industrial environments
- Office environments
- Living environments
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 96.5 mm | |
| Degree of protection (IP) | IP20 | |
| Output current | 6 A | |
| Width | 63 mm | |
| efficiency | 87 % | |
| Number of outputs | 1 | |
| Input voltage AC | 85-264 VAC, 90-375 VDC | |
| Power | 72 W | |
| Output voltage DC | 12 to 15 VDC | |
| Depth | 90 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
