TPC 030-148 | TRACO POWER

Power supply, 48 to 56 VDC, 0.6 A, 30 W, TPC 030-148

Order No.: 32C2650
EAN: 4099891284206
MPN:
TPC 030-148
Series: TPC
TPC 030-148 TRACO POWER DIN Rail Power Supplies

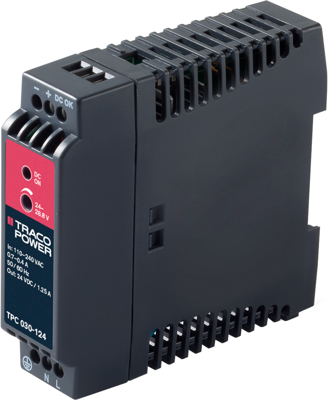

Image may differ
Unit Price (€ / pc.)
61.5468 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
Total Price:
61.55 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
61.5468 €

Industrial Power Supply, TPC 030-148, TRACO POWER

The TPC 030-148 is lightweight DIN-rail power supply with an excellent price/performance ratio. It consumes sparse standby power, and operates with high efficiency.

Features

  • Low ripple and noise
  • Short circuit and overload protection
  • Adjustable output voltage
  • Power good signal

Applications

  • Industrial, office and residential environments
Technical specifications
Degree of protection (IP) IP20
Depth 90 mm
Output voltage DC 48 to 56 VDC
Output current 0.6 A
Width 26.5 mm
Height 96.5 mm
Power 30 W
Number of outputs 1
efficiency 84 %
Input voltage AC 85-264 VAC, 90-375 VDC
Logistics
Country of origin CN
Customs tariff number 85044095
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
