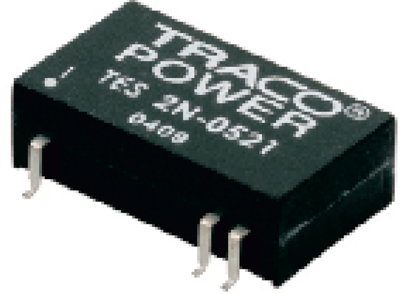

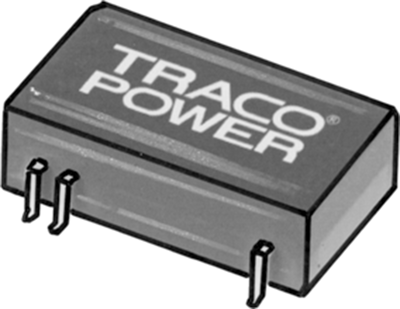

TES 2N-2412 | TRACO POWER
DC/DC converter, 18-36 VDC, 2 W, 1 output, 12 VDC, 80 % efficiency, TES 2N-2412
Unit Price (€ / pc.)
23.1931 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
23.19 € *
Price list
Quantity
Price per unit*
1 pcs.
23.1931 €
10 pcs.
20.8726 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD DC converters, type Traco TES2N.
Controlled 2.0 W converter; with 2 : 1 extended-range input, input filter to EN 55022, sustained short circuit-proof. Insulation voltage: I/O: 1500 VDC. Adjustment tolerance: ±2.0 %. Input voltage fluctuation: ±0.5 %. Load fluctuation: ±0.75 %. Residual ripple: 50 mVpp. Operating temperatures: –40 to +85 °C. Package: plastic.
Technical attributes (type, input voltage, output voltage, output current (± double), efficiency ): TES2N-2412, 18 - 36 VDC, 1 x OUT, 12 VDC, 165 mA, 80 %
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 12 VDC | |
| Output current | 165 mA | |
| Design | SMD | |
| Width | 13.7 mm | |
| Input voltage AC | 18-36 VDC | |
| Height | 9.3 mm | |
| Isolation voltage | 1.5 kV | |
| Length | 24 mm | |
| Power | 2 W | |
| efficiency | 80 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
