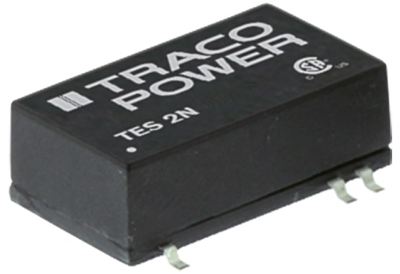

TES 2N-1221 | TRACO POWER
DC/DC converter, 9-18 VDC, 2 W, 2 outputs, ±5 VDC, 73 % efficiency, TES 2N-1221
Unit Price (€ / pc.)
23.6810 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
23.68 € *
Price list
Quantity
Price per unit*
1 pcs.
23.6810 €
10 pcs.
21.3010 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD DC converters, type Traco TES2N.
Controlled 2.0 W converter; with 2 : 1 extended-range input, input filter to EN 55022, sustained short circuit-proof. Insulation voltage: I/O: 1500 VDC. Adjustment tolerance: ±2.0 %. Input voltage fluctuation: ±0.5 %. Load fluctuation: ±0.75 %. Residual ripple: 50 mVpp. Operating temperatures: –40 to +85 °C. Package: plastic.
Technical attributes (type, input voltage, output voltage, output current (± double), efficiency ): TES2N-1221, 9.0 - 18 VDC, 2 x OUT, ±5.0 VDC, ±200 mA, 73 %
Technical specifications
| Number of outputs | 2 | |
| Output voltage DC | ±5 VDC | |
| Output current | 200 mA | |
| Design | SMD | |
| Width | 13.7 mm | |
| Input voltage AC | 9-18 VDC | |
| Height | 8.25 mm | |
| Isolation voltage | 1.5 kV | |
| Length | 24 mm | |
| Power | 2 W | |
| efficiency | 73 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
| MSL | MSL 2 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
