LM2594HVMX-5.0/NOPB | Texas Instruments

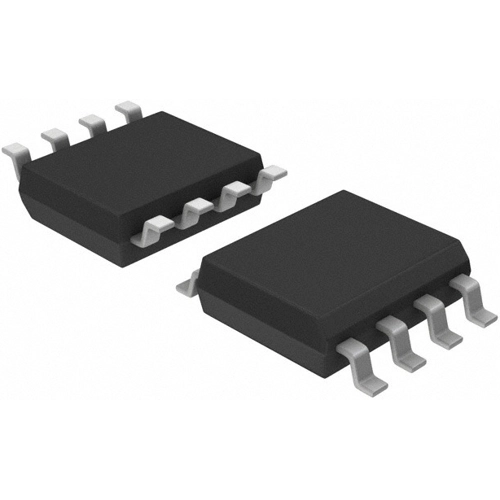

Step-down voltage regulator, 5 V, 500 mA, SOIC-8, Texas Instruments LM2594HVMX-5.0/NOPB
Order No.: 88S8655
EAN: 4099879091390
MPN:
LM2594HVMX-5.0/NOPB
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
4.6767 € *
Standard delivery time from the manufacturer is: 1 Week
Voltage Regulator, LM2594HVMX-5.0/NOPB, Texas Instruments
The LM2594HVMX-5.0/NOPB regulator is a monolithic integrated circuit that provides all the active functions for a step-down switching regulator, capable of driving 0.5 A load with excellent line and load regulation. This regulator requires a minimum number of external components, is simple to use, and features internal frequency compensation, a fixed-frequency oscillator, and improved line and load regulation specifications.
Features
- TTL Shutdown Capability
- Low Power Standby Mode
- High Efficiency
- Thermal Shutdown and Current-Limit Protection
Applications
- Efficient Preregulator for Linear Regulators
- On-Card Switching Regulators
- Positive-to-Negative Converter
- Simple high-efficiency step-down regulator
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Input voltage | 60 V | |
| Enclosure | SOIC-8 | |
| Output voltage DC | 5 V | |
| Assembly | SMD | |
| max. operating temperature | 125 °C | |
| Output current | 500 mA | |
| Input voltage AC | 4.5-60 V | |
| min. operating temperature | -40 °C |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Original Packaging | Reel with 2,500 pieces |
| Customs tariff number | 85423990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | not_specified |
