100007402 | Telegärtner

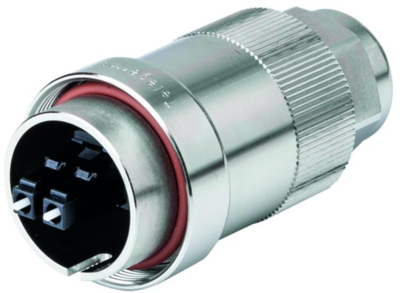

FO plug, LC, singlemode, ceramic, blue, 100007402

Order No.: 80F2006
EAN: 4018359476427
MPN:
100007402
J68070A0008
100007402 Telegärtner Fibre Optic Connectors
Image may differ
Unit Price (€ / pc.)
100.2575 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
100.26 € *
Price list
Quantity
Price per unit*
1 pcs.
100.2575 €
2 pcs.
93.7839 €
5 pcs.
88.1076 €
10 pcs.
81.8958 €
*incl. VAT plus shipping costs
Subject to prior sale

LC-plug, J68070A0008, Telegärtner

TOC Plugset IP68, LC Duplex Singlemode, Messing nickel-plated

More information about J68070A0008

  • Plug & Coupling to IEC 61754-20 (Zirconia ceramics). Singlemode/Multimode (PC) & Singlemode (APC) Executions. Insertion loss: Plug: Multimode max. 0,4 dB, Singlemode max. 0,5 dB. Return Loss: Plug: Multimode min. 30 dB, Singlemode PC min. 40 dB, APC min. 60 dB. Temperature range: -40° bis +85°C. Protection class IP68 to IEC 60529. Protective caps captive in Protection class IP68. Single cable diameter: 2,0 mm. Cable outer diameter: 4 - 9,5 mm. LC holding frame with extended detent lever and strain relief.
  • Designation: TOC Plugset IP68
  • Description: LC Duplex, Singlemode
  • Notes: Messing, nickel-plated
  • Fiber type: E9/125
  • Housing Color: Blue

Technical features

  • Connection type: Glue
  • APC version: False
  • Execution: Plug
  • Color: Blue
  • Suitable for fiber type: Singlemode
  • Connector type: LC-Duplex
  • Ferrule material: Ceramics
Technical specifications
Filter Property Value
Degree of protection (IP) IP68
Connection glue connection
Version LC
Ferrule ceramic
Chamfer type singlemode
Product type FO plug
Colour blue
Logistics
Property Value
Country of origin DE
Customs tariff number 85367000
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
