100007164 | Telegärtner

FO plug, LC, singlemode, ceramic, green, 100007164

Order No.: 80F1932
EAN: 4018359452902
MPN:
100007164
J08071A0042
100007164 Telegärtner Fibre Optic Connectors
Image may differ
Unit Price (€ / pc.)
10.3173 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
10.32 € *
Price list
Quantity
Price per unit*
1 pcs.
10.3173 €
10 pcs.
9.5795 €
25 pcs.
8.9488 €
50 pcs.
8.1277 €
*incl. VAT plus shipping costs
Subject to prior sale

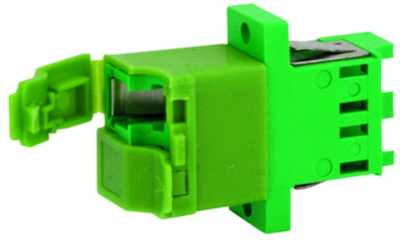

LC-plug, J08071A0042, Telegärtner

LC/APC Duplex Coupling, Singlemode, Ceramics sleeve, Plastic housing, Green, with Dust and Laser protection flap

More information about J08071A0042

  • Versions in singlemode and multimode. For fiber mounting 0.9 mm and cable mounting up to 3.2 mm. Multimode as 50 µ, 62.5 µ, 200 µ and 980 µ. Singlemode as 9 µ.
  • Designation: LC/APC Duplex Coupling, Singlemode, Ceramics sleeve, Plastic housing with Dust and Laser protection flap
  • Installation type: Snap-in or Screw mounting
  • Installation dimension: Z77
  • Housing color: Green

Technical features

  • Mounting type: Screw/Snap in
  • Color: Green
  • Suitable for fiber type: Singlemode
  • Connector type Connection 1: LC-Duplex
  • Connector type Connection 2: LC-Duplex
  • Sleeve material: Ceramics
  • Housing material: Plastic
Technical specifications
Filter Property Value
Connection screw connection
Version LC
Ferrule ceramic
Chamfer type singlemode
Product type FO plug
Colour green
Logistics
Property Value
Country of origin GB
Customs tariff number 85367000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
