J01011A0015 | Telegärtner

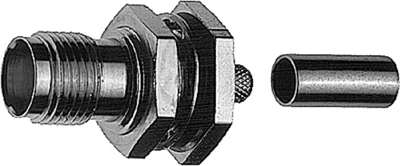

TNC panel socket 50 Ω, RG-58C/U, crimp connection, straight, J01011A0015
Order No.: 77F8402
EAN: 4018359108489
MPN:
J01011A0015
This item is no longer available.
As an alternative, we recommend the following item:

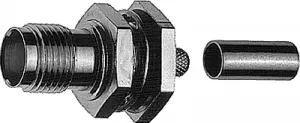

TNC panel socket 50 Ω, RG-58C/U, crimp/crimp, straight, 100023783
Order No.: 78F301
Manufacturer: Telegärtner
per pc. 6.2713 € *
Coaxial connector, J01011A0015, Telegärtner
TNC Bulkhead Jack Crimp G1 (RG-58C/U) crimp/crimp
This product is a commonly used coax connector. The same size as BNC connectors, but with a threaded coupling mechanism. Applications for this connector range from signal and data to video transmission where vibration resistance is required. It is a low-cost high-frequency solution for coax connections.
Technical Data
- Design: Jack
- Connector type: TNC
- Cable group: RG 58C/U
- Connection type: Crimp/Crimp
- Angled connector: false
- Impedance: 50 Ω
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 50 Ω | |
| Connector | TNC | |
| Cable Group | RG-58C/U | |
| Design | straight | |
| Contact material | brass | |
| Contact connection | crimp connection | |
| Version | panel socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
