100023783 | Telegärtner
TNC socket 50 Ω, RG-58C/U, crimp/crimp, straight, 100023783
Unit Price (€ / pc.)
8.5799 € *
Available: 33 pcs.
Leadtime: 4 Weeks **
Total Price:
8.58 € *
Price list
Quantity
Price per unit*
1 pcs.
8.5799 €
10 pcs.
7.5446 €
100 pcs.
6.6283 €
250 pcs.
6.3665 €
1000 pcs.
5.9619 €
*incl. VAT plus shipping costs
**Subject to prior sale

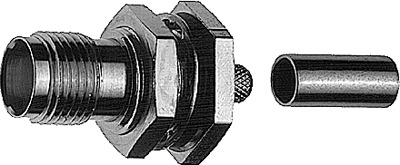

TNC Socket, 100023783, TELEGÄRTNER
TNC bulkhead jack cr/cr, G1 (RG-58C/U), 50 Ohm, IP67
This product is a commonly used coax connector. The same size as BNC connectors, but with a threaded coupling mechanism. Applications for this connector range from signal and data to video transmission where vibration resistance is required. It is a low-cost high-frequency solution for coax connections..
Technical Data
- Design: Jack
- Connector type: TNC
- Angled connector: false
- Impedance: 50 Ω
Technical specifications
| Version | socket | |
| Design | straight | |
| Impedance | 50 Ω | |
| Cable Group | RG-58C/U | |
| Contact connection | crimp/crimp | |
| Contact material | Beryllium copper | |
| Connector | TNC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
