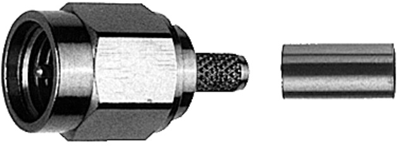

Name: SMA plug 50 Ω, RG-174/U, RG-188A/U, RG-316/U, solder/crimp connection, straight, 100027629
Brand: Telegärtner
SKU: 76F200
Price: 5.50 EUR
Availability: InStock

SMA plug 50 Ω, RG-174/U, RG-188A/U, RG-316/U, solder/crimp connection, straight, 100027629

Order No.: 76F200

Manufacturer: Telegärtner

Manufacturer SKU
100027629
J01150A0011Z

Manufacturer series: SMA

EAN: 4018359258221

Order reference: Supplied with sleeve

about the green icons

Active

Total price

( 5.4978 € * / pcs.)

5.50 €

Available: 973 pcs.

Quantity

Price per unit*

1 pcs.

5.4978 €

10 pcs.

4.9504 €

50 pcs.

4.3554 €

100 pcs.

3.7009 €

*incl. VAT plus shipping costs

Show 15 variants

Please send price/quantity requests to info@buerklin.com

Description

Product by Telegärtner at Bürklin Elektronik

Coaxial connector, J01150A0011, Telegärtner

SMA Straight Plug Crimp G7 (RG-316/U) solder/crimp

This product is a very popular coax connector with threaded coupling. It can be used up to frequencies of over 18 GHz (depending on type). SMA applications include communications, satellite and test equipment.

Technical Data

Design: Plug
Connector type: SMA
Cable group: RG 316/U
Connection type: Solder/Crimp
Angled connector: false
Insulated mounting: false
Impedance: 50 Ω

Technical specifications

	Version	plug
	Design	straight
	Impedance	50 Ω
	Cable Group	RG-174/U, RG-188A/U, RG-316/U
	Contact connection	solder/crimp connection
	Contact material	brass
	Connector	SMA

Show similar products (0)

Logistics

Country of origin	DE
Customs tariff number	85366910

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	No
Substance description	Lead

Download

Declaration of Conformity - EN

Declaration of Conformity

Technical Data Sheet - DE

Technical Data Sheet

Assembly instructions - DE

Assembly instructions

Declaration of Conformity - DE

Declaration of Conformity
