100024728 | Telegärtner

SMA socket 50 Ω, 1.5/3.8, solder/crimp connection, straight, 100024728

Order No.: 80F1597
EAN: 4018359301552
MPN:
100024728
J01151A1111
Series: SMA
100024728 Telegärtner Coaxial Connectors
Image may differ
Unit Price (€ / pc.)
8.2348 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
8.23 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
8.2348 €

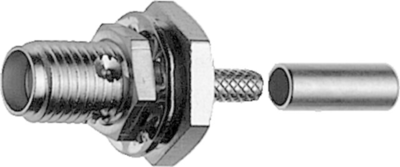

Coaxial connector, J01151A1111, Telegärtner

SMA Bulkhead Jack Crimp G30 (1.5/3.8), G54 (1.5/3.8 FLEX) with seal ring

This product is a very popular coax connector with threaded coupling. It can be used up to frequencies of over 18 GHz (depending on type). SMA applications include communications, satellite and test equipment.

Technical Data

  • Design: Jack
  • Connector type: SMA
  • Cable group: 1.5/3.8
  • Connection type: Solder/Crimp
  • Angled connector: false
  • Insulated mounting: false
  • Impedance: 50 Ω
Technical specifications
Impedance 50 Ω
Connector SMA
Cable Group 1.5/3.8
Design straight
Contact material brass
Contact connection solder/crimp connection
Version socket
Logistics
Country of origin DE
Customs tariff number 85366910
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
