100024698 | Telegärtner

Name: SMA socket 50 Ω, RG-188A/U, RG-174/U, KX-3B, RG-316/U, KX-22A, solder/crimp connection, straight, 100024698
Brand: Telegärtner
SKU: 76F311
Price: 10.52 EUR
Availability: InStock

SMA socket 50 Ω, RG-188A/U, RG-174/U, KX-3B, RG-316/U, KX-22A, solder/crimp connection, straight, 100024698

Order No.: 76F311

Manufacturer: Telegärtner

Manufacturer SKU
100024698
J01151A0541

Manufacturer series: SMA

EAN: 4018359121877

about the green icons

Active

Total price

( 10.5196 € * / pcs.)

10.52 €

Available: 42 pcs.

Next delivery: 85 pcs. on 2023-03-31

Quantity

Price per unit*

1 pcs.

10.5196 €

10 pcs.

9.4605 €

50 pcs.

8.3181 €

100 pcs.

7.0805 €

*incl. VAT plus shipping costs

Show 5 variants

Please send price/quantity requests to info@buerklin.com

Description

Product by Telegärtner at Bürklin Elektronik

Coaxial connector, J01151A0541, Telegärtner

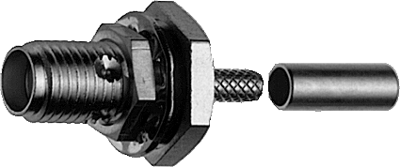

SMA Bulkhead Jack Crimp G7 (RG-316/U) with panel seal

This product is a very popular coax connector with threaded coupling. It can be used up to frequencies of over 18 GHz (depending on type). SMA applications include communications, satellite and test equipment.

Technical Data

Design: Jack
Connector type: SMA
Cable group: RG 316/U
Connection type: Solder/Crimp
Angled connector: false
Insulated mounting: false
Impedance: 50 Ω

Technical specifications

	Version	socket
	Design	straight
	Impedance	50 Ω
	Cable Group	RG-188A/U, RG-174/U, KX-3B, RG-316/U, KX-22A
	Contact connection	solder/crimp connection
	Contact material	brass
	Connector	SMA
