100024403 | Telegärtner
7/16 plug 50 Ω, 2.7/7.1, solder/crimp connection, angled, 100024403
Unit Price (€ / pc.)
36.3783 € *
Available: 0 pcs.
Leadtime: On Request **

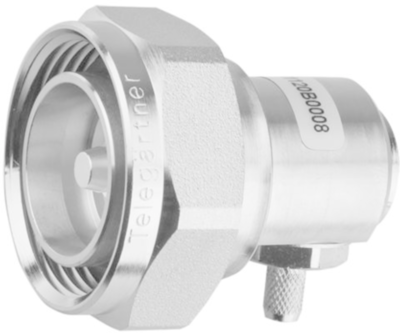

Coaxial connector, J01120B0009, Telegärtner
7-16 Angle Plug Crimp G42 (2.7/7.1), RG-213/U
This product is a very popular coax connector for use in Mobile Radio equipment. It is a larger sized precision weatherproof connector supplied with a thread coupling. Depending on design, this connector can be used up to 7.5 GHz. It also allows high-power high-frequency transmission in coaxial lines.
Technical Data
- Design: Plug
- Connector type: 7/16
- Cable group: 2.7/7.1
- Connection type: Solder/Crimp
- Angled connector: true
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Version | plug | |
| Design | angled | |
| Impedance | 50 Ω | |
| Cable Group | 2.7/7.1 | |
| Contact connection | solder/crimp connection | |
| Contact material | brass | |
| Connector | 7/16 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
