100024006 | Telegärtner
N socket 50 Ω, RG-223/U, RG-400/U, crimp connection, straight, 100024006
Unit Price (€ / pc.)
14.0182 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
14.02 € *
Price list
Quantity
Price per unit*
1 pcs.
14.0182 €
10 pcs.
13.0424 €
50 pcs.
11.9833 €
*incl. VAT plus shipping costs
Subject to prior sale

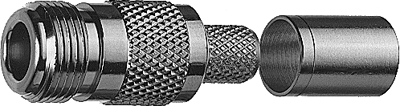

Coaxial connector, J01021A0146, Telegärtner
N Straight Jack Crimp G5 (RG-223/U) crimp/crimp
This product is a very popular coax connector. It is a medium sized, precision, weatherproof connector supplied with a screw coupling. In some applications this connector can be used up to 11 GHz. It also provides a medium-power high-frequency solution for coax connections.
Technical Data
- Design: Jack
- Connector type: N
- Cable group: RG 223/U
- Connection type: Crimp/Crimp
- Angled connector: false
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Impedance | 50 Ω | |
| Connector | N | |
| Cable Group | RG-223/U, RG-400/U | |
| Design | straight | |
| Contact material | brass | |
| Contact connection | crimp connection | |
| Version | socket |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
