100023903 | Telegärtner
N plug 50 Ω, RG-174/U, RG-188A/U, RG-316/U, crimp connection, straight, 100023903
Unit Price (€ / pc.)
12.2094 € *
Available: 14 pcs.
Total Price:
12.21 € *
Price list
Quantity
Price per unit*
1 pcs.
12.2094 €
10 pcs.
10.7457 €
50 pcs.
10.0079 €
150 pcs.
9.5795 €
500 pcs.
9.0797 €
*incl. VAT plus shipping costs
Subject to prior sale

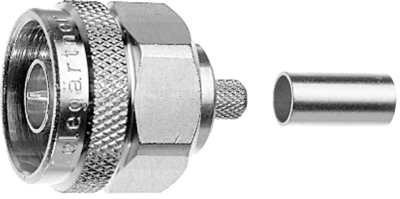

Coaxial connector, J01020A0103, Telegärtner
N Straight Plug Crimp G7 (RG- 316/U), crimp/crimp
This product is a very popular coax connector. It is a medium sized, precision, weatherproof connector supplied with a screw coupling. In some applications this connector can be used up to 11 GHz. It also provides a medium-power high-frequency solution for coax connections.
Technical Data
- Design: Plug
- Connector type: N
- Cable group: RG 316/U
- Connection type: Crimp/Crimp
- Angled connector: false
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 50 Ω | |
| Connector | N | |
| Cable Group | RG-174/U, RG-188A/U, RG-316/U | |
| Design | straight | |
| Contact material | brass | |
| Contact connection | crimp connection | |
| Version | plug |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
