100023816 | Telegärtner

TNC plug 75 Ω, RG-59B/U, 0.6-3.7, 0.6L-3.7, straight, 100023816

Order No.: 77F806
EAN: 4018359108946
MPN:
100023816
J01012A2215
Series: TNC

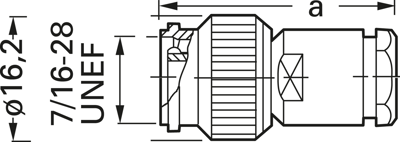

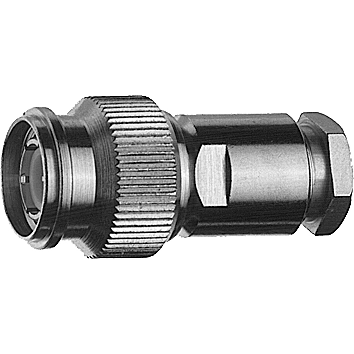

100023816 Telegärtner Coaxial Connectors Image 1
100023816 Telegärtner Coaxial Connectors Image 2
Image may differ
This item is no longer available.
As an alternative, we recommend the following item:

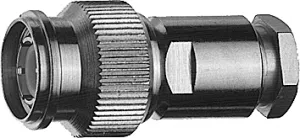

TNC plug 75 Ω, RG-59B/U, 0.6-3.7, 0.6L-3.7, straight, 100124609
TNC plug 75 Ω, RG-59B/U, 0.6-3.7, 0.6L-3.7, straight, 100124609
Order No.: 77F808
Manufacturer: Telegärtner
per pc. 14.8988 € *

Coaxial connector, J01012A2215, Telegärtner

TNC Straight Plug G2 (RG-59B/U) MIL-clamp IP 67

This product is a commonly used coax connector. The same size as BNC connectors, but with a threaded coupling mechanism. Applications for this connector range from signal and data to video transmission where vibration resistance is required. It is a low-cost high-frequency solution for coax connections.

Technical Data

  • Design: Plug
  • Connector type: TNC
  • Cable group: RG 59B/U
  • Connection type: other
  • Angled connector: false
  • Insulated mounting: false
  • Impedance: 75 Ω
Technical specifications
Impedance 75 Ω
Connector TNC
Cable Group RG-59B/U, 0.6-3.7, 0.6L-3.7
Design straight
Contact material brass
Contact connection other
Version plug
Logistics
Country of origin DE
Customs tariff number 85366910
Compliance
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
